Hammerhead™ Series Harness 5pt., Padded Back, QCB Chest, Tongue & Buckle Leg Straps, SRL Back Plate, Positioning Belt with Side D-Rings
USER CAPACITY:
130 – 420
lbs.
DESIGN:
Back dorsal
D-Ring for fall arrest
SRL back plate
tunnel for personal self-retracting device
Built-in
construction belt with work positioning side D-rings
Quick connect
chest and leg buckles with roller cam torso
Breakaway
lanyard keepers
WEBBING:
Material:
Polyester | Width: 1.73 in. | Breaking Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
Steel | Finish: Silver or Golden Yellow Galvanized
CONFORMS TO:
Meets or
Exceeds ANSI Z359.11-2021
SIZES:
Part #
Color
Size
H222101123SM
Blue
Small
H222101123MD
Medium
H222101123LG
Large
H222101123XLG
XL
H222101123.2XLG
2XL
H222101123.3XLG
3XL
$105.99*
Lanyard 6 ft. Internal Shock, Rebar Hook, Single Leg.
DESIGN:
1.57 in. wide
polyester tubular webbing incorporated with energy absorbing (6 ft.)
POY webbing.
One end of the
lanyard equipped with steel stamped snap hook (PN-146) and the other
end of the lanyard equipped with a steel snap hook (PN-167).
WEBBING:
Material:
Polyester
Width: 1.57 in.
± 0.04 in.
Breaking
Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
steel
Plating: Zinc
plated
Finish: Shot
blasted
Breaking
Strength: 5000 lbs.
VITAL TEST
COMPLIANCE:
Static
Strength: 5000 lbs. for 1 minute
Dynamic
Strength: Maximum breaking force does not exceed 1800 lbs. in the
line when tested on a free fall from 6 ft. height attached to a test
mass of 282 lbs.
Weight:
3.37
lbs. ± 0.02 lbs.
$999.00*
Lanyard 6 ft. Internal Shock, Small Hook, Single Leg
DESIGN:
1.57 in. wide
polyester tubular webbing incorporated with energy absorbing (6 ft.)
polyester webbing
WEBBING:
Material:
Polyester
Width: 1.57 in.
± 0.04 in.
Breaking
Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
steel
Plating: Zinc
plated
Finish: Shot
blasted
Breaking
Strength: 5000 lbs.
VITAL TEST
COMPLIANCE:
Static
Strength: 5000 lbs. for 1 minute
Dynamic
Strength: Maximum breaking force does not exceed 1800 lbs. in the
line when tested on a free fall from 6 ft. height attached to a test
mass of 282 lbs.
Weight:
2.54
lbs. ± 0.02 lbs.
$999.00*
Lanyard 6 ft. Internal Shock, Small Hooks. Double Leg
DESIGN:
Y shaped 1.57
in. wide polyester tubular webbing incorporated with energy
absorbing (6 ft.) polyester webbing with each end having a steel
stamped snap hook.
WEBBING:
Material:
Polyester | Width: 1.57 in. ± 0.04 in. | Breaking Strength: 5000
lbs. (Min)
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
steel
Plating: Zinc
plated
Finish: Shot
blasted
Breaking
Strength: 5000 lbs.
NORM:
Meets or Exceeds ANSI Z359.13-2013
$999.00*
Lanyard 6 ft. Shock Absorber, Rebar Hooks, Double Leg
DESIGN:
Double, Y
shaped lanyard incorporated with shock absorber.
One end of the
shock absorber equipped with steel snap hook while the other sides
of the lanyard are equipped with Steel rebar hooks.
WEBBING:
Material:
Polyester
Width: 0.98 in.
± 0.04 in.
Breaking
Strength: 30 kN (Min)
STITCHING THREAD:
Material:
High-tenacity polyamide | Color: Black
METAL COMPONENT:
Material:
Medium Carbon Steel (Hardness 35 to 42 HRC) Plating: Zinc Plated |
Finish: Shot blasted Tensile Strength (PN-124): MIN 22.2 kN |
Tensile Strength (PN-131): MIN 22.2 kN Gate Face Testing (PN-124):
MIN 1.0 kN | Gate Face Testing (PN-131): MIN 1.0 kN Side Load
Testing (PN-124): MIN 1.6 kN | Side Load Testing (PN-131): MIN 1.6
kN
VITAL TEST
COMPLIANCE:
Static
Strength: 22.2 kN for 2 minutes Dynamic Strength: Maximum breaking
force does not exceed 8 kN and lanyard elongation does not exceed 42
inches from a 6 foot free fall.
WEIGHT OF
HARNESS:
3.85
lbs. ± 0.02 lbs.
$999.00*

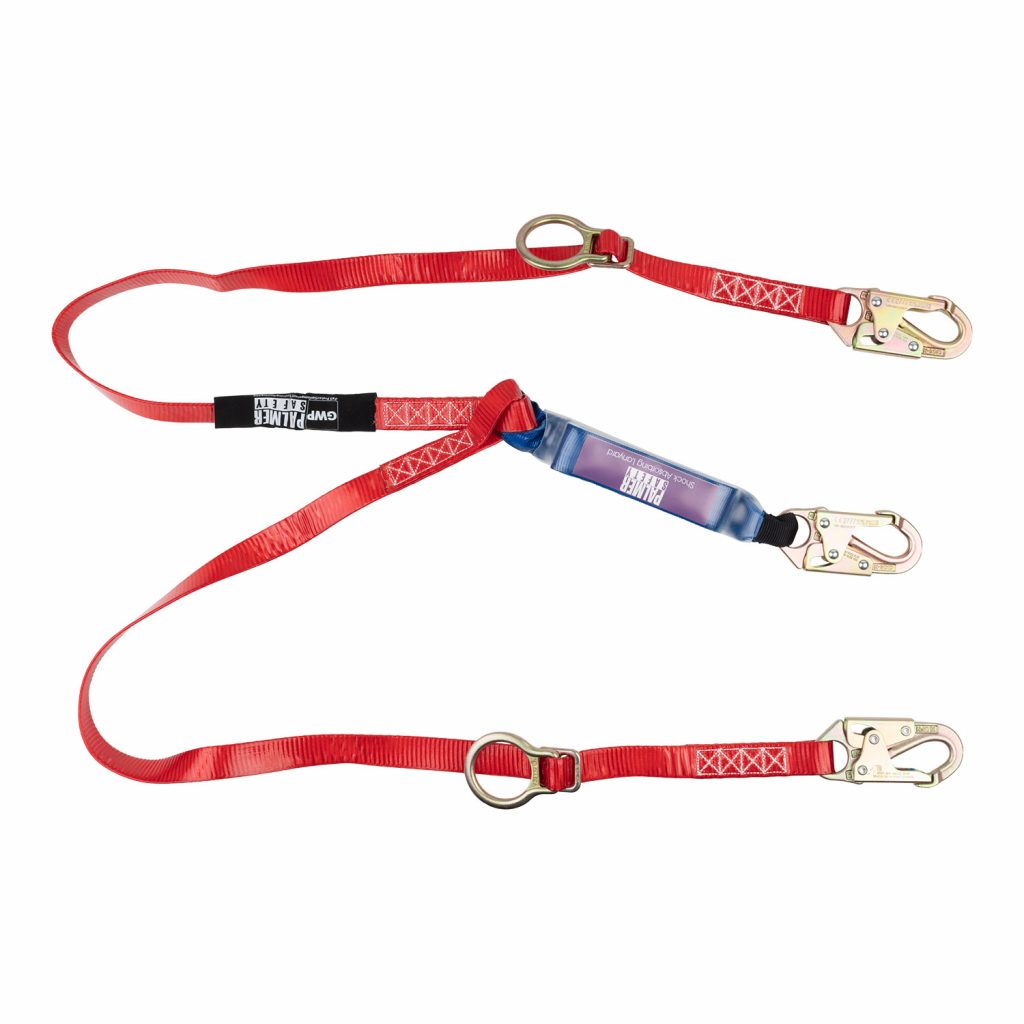

6 ft. Double Lanyard, Blue Shock Absorber, Steel Snap Hooks
DESIGN:
Webbing lanyard
incorporated with shock absorber.
All ends of the
lanyard equipped with steel snap hook.
WEBBING:
Material:
Polyester
Width: 1.18 in.
± 0.03 in.
Breaking
Strength: 30 kN (Min)
STITCHING THREAD:
Material:
High-tenacity polyamide
Color: Black
METAL COMPONENT:
Material:
Medium Carbon Steel (Hardness 35 to 42 HRC)
Plating: Zinc
Plated
Finish: Shot
blasted
Tensile
Strength: MIN 22.2 kN
Gate Face
Testing: MIN 1.0 kN
Side Load
Testing: MIN 1.6 kN
VITAL TEST
COMPLIANCE:
Static
Strength: 22.2 kN for 2 minutes
Dynamic
Strength: Maximum breaking force does not exceed 8 kN and lanyard
elongation does not exceed 42 inches from a 6 foot free fall.
WEIGHT OF
HARNESS:
3.61
lbs. ± 0.02 lbs.
$51.99*
Adjustable lanyard 4 – 6 ft. Blue shock absorber, rebar hook.
DESIGN:
Webbing lanyard
incorporated with shock absorber.
One side of the
lanyard equipped with steel snap hook (PN 146) and the other side of
the
lanyard
equipped with Steel hook (PN 167).
Adjuster ring
provides for adjustment.
WEBBING:
Material:
Polyester
Width: 1.18 in.
± 0.03 in.
Breaking
Strength: 6000 lbs (Min)
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
Steel
Finish: Silver
or Golden Yellow Galvanized
Breaking
Strength: 5000 lbs
VITAL TEST
COMPLIANCE:
Static
Strength: 5000 lbs. for 1 Minutes.
Dynamic
Strength : Maximum breaking force does not exceed 8 kN in the line
when tested on a
free fall from
6 ft. height attached to a test mass of 282.19 lbs.
WEIGHT OF
HARNESS:
3.61
lbs. ± 0.02 lbs.
$999.00*
Adjustable lanyard 4 – 6 ft. Blue shock absorber, small hook
DESIGN:
Single leg
lanyard incorporated with shock absorber.
Two side of the
lanyards equipped with steel snap hook (PN 146)
WEBBING:
Material:
Polyester
Width: 1.18 in.
± 0.03 in.
Breaking
Strength: 6000 lbs (Min)
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
Steel
Finish: Silver
or Golden Yellow Galvanized
Breaking
Strength: 5000 lbs.
VITAL TEST
COMPLIANCE:
Static
Strength: 5000 lbs. for 1 Minutes.
Dynamic
Strength : Maximum breaking force does not exceed 8 kN in the line
when tested on a
free fall from
6 ft. height attached to a test mass of 282.19 lbs.
Weight:
2.88
lbs. ± 0.02 lbs.
$999.00*
Akula™ Series Harness 5pt., Padded Back/Legs, QCB, Positioning Belt Side D-Rings, Back and Dual Front D-Rings, Black
USER CAPACITY:
130 – 420
lbs.
DESIGN:
One (1) dorsal
attachment D-ring for fall arrest; one (1) front D-ring for climbing
purpose; one (1) ventral D-ring for rope access purpose
Equipped with
work positioning belt with two (2) side D-rings for work positioning
Adjustable
shoulder straps for easy adjustment and snug fitting
Adjustable
H-style leg straps for snug fitting
One (1) lanyard
keeper has been incorporated to store unused leg of the lanyard
WEBBING:
Material:
Polyester
Width: 1.73 in.
Breaking
Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: All
Black Aluminum Hardware
CONFORMS TO:
Meets or
exceeds ANSI Z359.11-2021
WEIGHT:
5.82 lbs.
Size:
H22312162.S/M :
Small – Medium
H22312162.L/XL
: Large – X-Large
$264.99*
BEAST™ Series 100’ SRL with Small Hook
PHYSICAL PARAMETERS:
Robust &
durable plastic casing.
Has swivel eye
at anchorage end.
Swivel steel
snap hook with load indicator at attachment end
Galvanized
steel wire rope
LENGTH:
100′
CABLE:
Material:
Galvanized steel wire rope diameter of 3/16”
Minimum
Breaking Strength: 3300 lbs.
CONFORMS TO:
Meets or
Exceeds ANSI Z359.14-2021 Class 1
$999.00*
BEAST™ Series 11’ SRL Web with Rebar Hook
PHYSICAL PARAMETERS:
Robust &
durable plastic casing.
Has swivel
anchorage eye at anchorage end.
Forged swivel
rebar hook with load indicator at attachment end
Polyester
Webbing
LENGTH:
11 ft.
WEBBING:
Material:
Polyester
Width: 1”
Minimum
Breaking Strength: 4500 lbs.
CONFORMS TO:
Meets or
Exceeds ANSI Z359.14-2021 Class 1
WEIGHT:
4.35 lbs. ±
0.11 lbs.
$999.00*
BEAST™ Series 15’ SRL Galvanized Cable with Small Hook
USER CAPACITY:
ANSI 130 –
310 lbs. & OSHA 420 lbs.
PHYSICAL
PARAMETERS:
Robust &
durable plastic casing
Has swivel
anchorage eye at anchorage end
Swivel steel
snap hook with load indicator at attachment end (gate strength 3600
lbs.)
Galvanized
steel wire rope 3/16”
LENGTH:
15 ft.
CABLE:
Material:
Galvanized steel wire rope diameter of 3/16”
MINIMUM BREAKING
STRENGTH:
3,000 lbs.
CONFORMS TO:
Meets or
exceeds ANSI Z359.14-2021 Class 1
WEIGHT:
8.24 lbs.
$999.00*
BEAST™ Series 20’ SRL Galvanized Cable with Small Hook
USER CAPACITY:
130 – 310
lbs.
PHYSICAL
PARAMETERS:
Robust &
durable plastic casing
Has swivel
anchorage eye at anchorage end
Swivel steel
snap hook with load indicator at attachment end (gate strength 3600
lbs.)
Galvanized
steel wire rope 3/16”
LENGTH:
20’
CABLE:
Material:
Galvanized steel wire rope diameter of 3/16”
MINIMUM BREAKING
STRENGTH:
3,000 lbs.
CONFORMS TO:
Meets or
exceeds ANSI Z359.14-2021 Class 1
WEIGHT:
8.54 lbs.
$999.00*
BEAST™ Series 30’ SRL with Small Hook
PHYSICAL PARAMETERS:
Robust &
durable plastic casing.
Has swivel eye
at anchorage end.
Swivel steel
snap hook with load indicator at attachment end
Galvanized
steel wire rope
LENGTH:
30′
CABLE:
Material:
Galvanized steel wire rope diameter of 3/16”
Minimum
Breaking Strength: 3300 lbs.
CONFORMS TO:
Meets or
Exceeds ANSI Z359.14-2021 Class 1
WEIGHT:
13.14 lbs. ±
0.11 lbs.
$999.00*
BEAST™ Series 50’ SRL with Small Hook
PHYSICAL PARAMETERS:
Robust &
durable plastic casing.
Has swivel eye
at anchorage end.
Swivel steel
snap hook with load indicator at attachment end
Galvanized
steel wire rope
LENGTH:
50′
CABLE:
Material:
Galvanized steel wire rope diameter of 3/16”
Minimum
Breaking Strength: 3300 lbs.
CONFORMS TO:
Meets or
Exceeds ANSI Z359.14-2021 Class 1
WEIGHT:
15.30 lbs. ±
0.11 lbs.
$999.00*
Full Body Harness
DESIGN:
One dorsal
attachment D-ring for fall arrest.
Adjustable
Shoulder straps.
Adjustable
grometed leg straps.
Two side D Ring
for work positioning
Shoulder pad
incorporated for comfort
WEBBING:
Material –
Polyester | Width – 44±1mm | Breaking strength – 5000 lbs
STITCHING THREAD:
Material:
High-tenacity Polyester
METAL COMPONENT:
Material –
High Strength Steel | Plating – Zinc plated | Finish –
Shotblasted.
VITAL TEST
COMPLIANCE:
Static
Strength: 3600 lbs. for 1 minute.Dynamic Performance: The upper ring
of dummy of 100 kg mass is raised to a height which allow to
generate 16kN force above the anchorage point for free fall.
Weight:
1900gm.
±10 gm.
$999.00*
Harness 3pt., Tongue and Buckle Leg Straps, Back/Side D-Rings, Yellow
USER CAPACITY:
130 – 310 lbs
DESIGN:
One dorsal
attachment D-ring for fall arrest
Adjustable
Shoulder straps
Adjustable
grommeted leg straps
Two side
D-rings for work positioning
WEBBING:
Material:
Polyester
Width: 1.73 in.
Breaking
Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENTS:
Material: Alloy
steel
Plating: Silver
or golden yellow galvanized
CONFORMS TO:
Meets or
exceeds ANSI Z359.11-2021
WEIGHT:
3.53 lbs.
$52.99*
Harness 5pt, Grommet legs, Back D-Ring, with Dual Lanyard Rebar Hooks
Design:
Tie back lanyard
attached to the Dorsal D-RingAdjustable Shoulder
straps.Adjustable grometed
leg straps.
WEBBING:
Material: PolyesterWidth: 1.73 ± 0.03
in (44±1mm)Breaking strength:
5000 lbs
STITCHING THREAD:
High-tenacity
Polyester
METAL COMPONENTS:
Alloy Steel, Silver
or Golden Yellow Galvanized
VITAL TEST
COMPLIANCE:
Static Strength :
3600 lbs for 1 Minutes
WEIGHT:
Harness: 3.30 lbs ±
0.02 lbs (1500 gm ±10 g )Lanyard: 5.44 lbs ±
0.02 lbs (2470 gm ±10 gm)
$999.00*
Harness Kit Combo 3pt.
USER CAPACITY:
130
– 310 lbs. (59 -140 kg)
DESIGN:
One dorsal
attachment D-ring for fall arrest.
Adjustable leg
straps.
WEBBING:
Material:
Polyester
Width: 1.73 in.
± 0.04 in.
Breaking
Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
Steel
Finish: Silver
or Golden Yellow Galvanized
WEIGHT OF
HARNESS:
2.23 lbs. ±
0.02 lbs.
$79.99*
Lanyard 6 ft. Internal Shock, Rebar Hooks, Double Leg
DESIGN:
Y shaped 1.57
in. wide polyester tubular webbing incorporated with energy
absorbing (6 ft.) polyester webbing.
WEBBING:
Material:
Polyester
Width: 1.57 in.
± 0.04 in.
Breaking
Strength: 6000 lbs. (Min)
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
steel | Plating: Zinc plated | Finish: Shot blasted | Breaking
Strength: 5000 lbs.
VITAL TEST
COMPLIANCE:
Static
Strength: 5000 lbs. for 1 minute
Dynamic
Strength: Maximum breaking force does not exceed 1800 lbs. in the
line when tested on a free fall from 6 ft. height attached to a test
mass of 282 lbs.
WEIGHT OF
HARNESS:
5.84
lbs. ± 0.02 lbs.
$999.00*
Mako™ Series Harness 5pt., Back and Shoulder D-Rings, Tongue and Buckle Leg Straps, Blue
USER CAPACITY:
130 – 310
lbs.
DESIGN:
One Dorsal
D-ring
Two Shoulder
D-rings
Two lanyard
parking
Heavy duty
grommet leg straps
WEBBING:
Material:
Polyester
Width: 1.73 in.
Breaking
Strength: 5000 lbs.
STITCHING THREAD:
Material:
High-tenacity polyester
METAL COMPONENT:
Material: Alloy
Steel | Finish: Silver or Golden Yellow Galvanized
CONFORMS TO:
Meets or
Exceeds ANSI Z359.11-2021
WEIGHT:
3.6 lbs.
$57.99*
MicroBEAST EDGE™ Series 8’ Twin Leading Edge Lightweight Cable SRL with Rebar Hooks
PHYSICAL PARAMETERS:
Lightest
available SRL in its range/class
Robust &
durable plastic casting
Steel rebar
hooks at attachment end
LENGTH:
8 ft. (Maximum)
CABLE:
13/64” ~
7/32” diameter
MAX WEIGHT
CAPACITY:
310 lbs.
CONFORMS TO:
Meets or
Exceeds ANSI Z359.14-2021 Class 2
WEIGHT:
11.45 lbs.
(Twin Unit)
$999.00*
MicroBEAST™ Series 8’ SRL Lightweight Web with Rebar Hook
PHYSICAL PARAMETERS:
Lightest
available SRL in its range/class
Robust &
durable plastic casting
Technora
Webbing with Energy absorber
Steel rebar
hook at attachment end
LENGTH:
8 ft. (Maximum)
WEBBING:
Material:
Technora webbing 13/16”
Minimum
Breaking Strength: 4500 lbs.
CONFORMS TO:
Meets or
Exceeds ANSI Z359.14-2021 Class 1
$999.00*
Roofing Bucket Kit
HARNESS DESIGN:
One dorsal
attachment D-ring for fall arrest.
Adjustable
shoulder straps.
Adjustable leg
straps
HARNESS WEBBING:
Material:
Polyester
Width: 1.73 in.
± 0.04 in.
Breaking
Strength: 5000 lbs.
HARNESS METAL
COMPONENT:
Material: Alloy
steel
USER CAPACITY:
130 – 310
lbs. (59 -140 kg)
WEIGHT:
15.8 lbs. ±
0.02 lbs.
$999.00*
